XG8T-1241

XG8T-1241

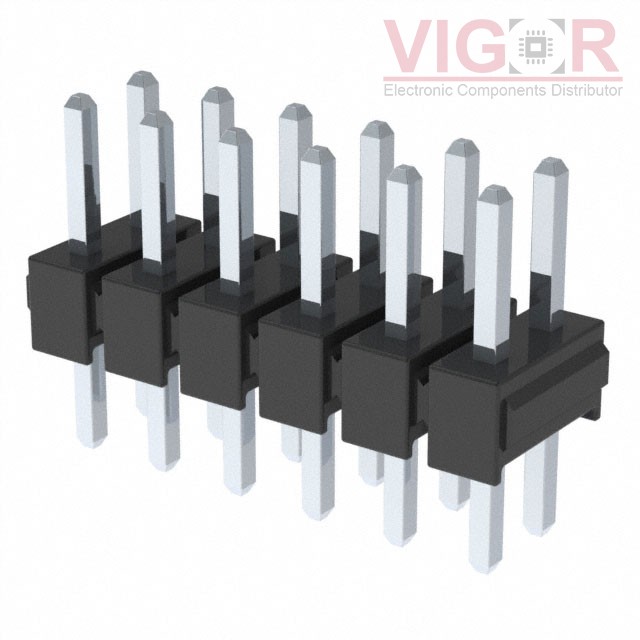

Image is for reference,
please contact us to get the real picture

Part No :

XG8T-1241

Manufacturer
Omron Electronics Components
Description
CONN HEADER VERT 12POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
XG8T-1241 PDF
Availability
0 pieces
Unit Price
$0.56560

Current price of XG8T-1241 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XG8T-1241 Specifications
Type Description
Series:XG8
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.169" (4.30mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.386" (9.80mm)
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass, Nickel
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:300V
