2336494-3

2336494-3

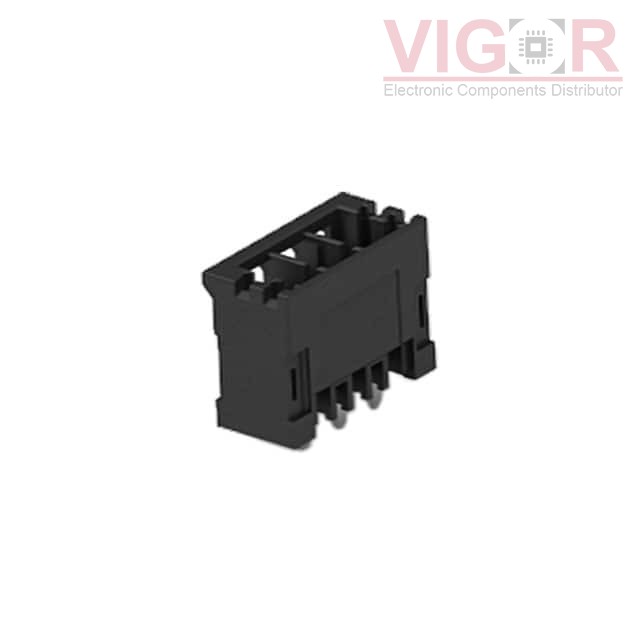

Image is for reference,
please contact us to get the real picture

Part No :

2336494-3

Manufacturer
TE Connectivity AMP Connectors
Description
D2970 HDR 180 DEGREE 3POSN 1ROW
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
2336494-3 PDF
Availability
1136 pieces
Unit Price
$2.75000

Current price of 2336494-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2336494-3 Specifications
Type Description
Series:Dynamic D-2970
Package:Box
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.197" (5.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.102" (2.60mm)
Overall Contact Length:-
Insulation Height:0.583" (14.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:300V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT FTS-122-01-L-S

FTS-122-01-L-S

CONN HEADER VERT 22POS 1.27MM
HOT 892-70-068-10-002101

892-70-068-10-002101

CONN HEADER VERT 68POS 2.54MM

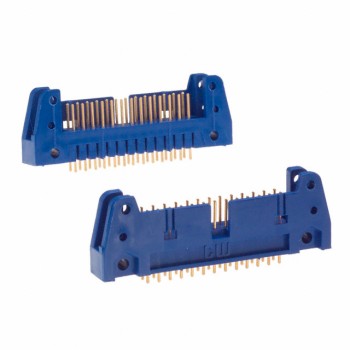

HOT CWN-350-26-0000
