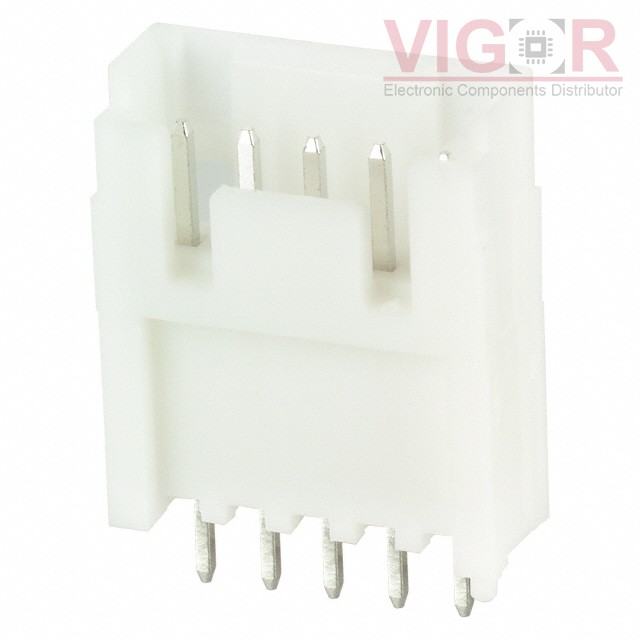

DF1BD-5P-2.5DSA(05)

DF1BD-5P-2.5DSA(05)

Image is for reference,
please contact us to get the real picture

Part No :

DF1BD-5P-2.5DSA(05)

Manufacturer
Hirose
Description
CONN HEADER VERT 5POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
DF1BD-5P-2.5DSA(05) PDF
Availability
0 pieces
Unit Price
$0.68200

Current price of DF1BD-5P-2.5DSA(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF1BD-5P-2.5DSA(05) Specifications
Type Description
Series:DF1B
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.177" (4.50mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.689" (17.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Keying Slot
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:250V
