0022292051

0022292051

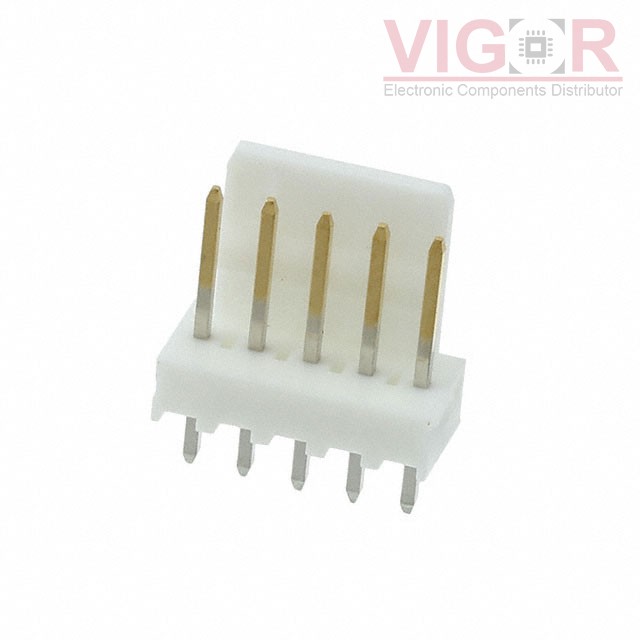

Image is for reference,
please contact us to get the real picture

Part No :

0022292051

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 5POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
0022292051 PDF
Availability
2634 pieces
Unit Price
$1.14000

Current price of 0022292051 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0022292051 Specifications
Type Description
Series:KK254, 6410
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.140" (3.56mm)
Overall Contact Length:0.560" (14.22mm)
Insulation Height:0.461" (11.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
