10150096-3200RLF

10150096-3200RLF

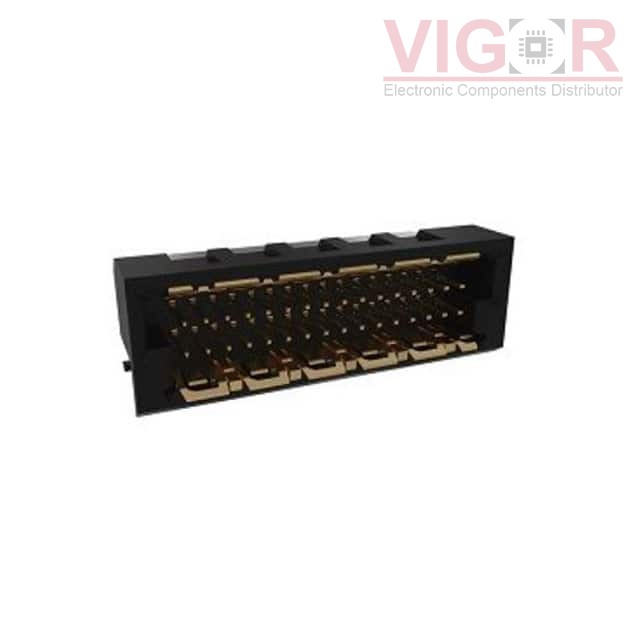

Image is for reference,
please contact us to get the real picture

Part No :

10150096-3200RLF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
MINITEK MICROSPEED 1.00MM BOARD-
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
10150096-3200RLF PDF
Availability
1198 pieces
Unit Price
$5.29000

Current price of 10150096-3200RLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10150096-3200RLF Specifications
Type Description
Series:Minitek® MicroSpeed
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:32
Number of Rows:2
Row Spacing - Mating:0.059" (1.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.114" (2.90mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.266" (6.76mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.94µin (0.100µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Board Guide, Solder Retention
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:100VAC
