0009652048

0009652048

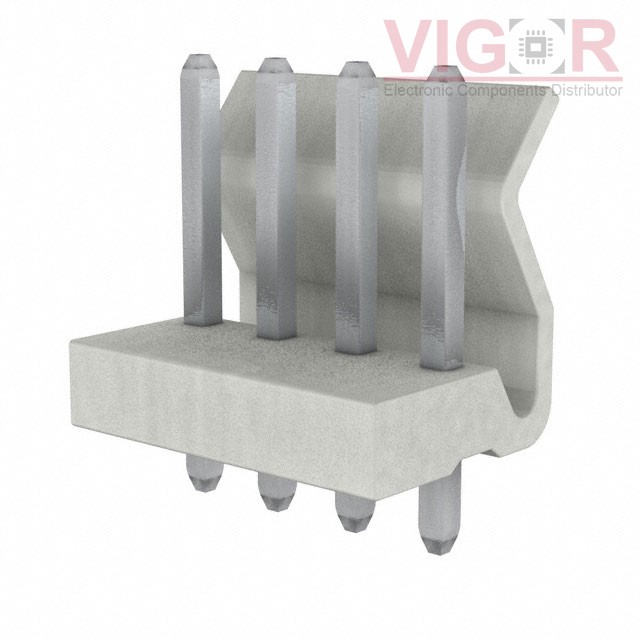

Image is for reference,
please contact us to get the real picture

Part No :

0009652048

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 4POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
0009652048 PDF
Availability
607 pieces
Unit Price
$0.32000

Current price of 0009652048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0009652048 Specifications
Type Description
Series:KK396, 5273
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.419" (10.65mm)
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:0.687" (17.45mm)
Insulation Height:0.482" (12.25mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:200.0µin (5.08µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0026584066

0026584066

CONN HEADER VERT 6POS 3.96MM

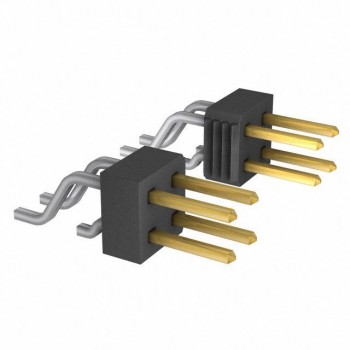

HOT TSM-115-01-L-DH-K-TR

TSM-115-01-L-DH-K-TR

CONN HEADER SMD R/A 30POS 2.54MM

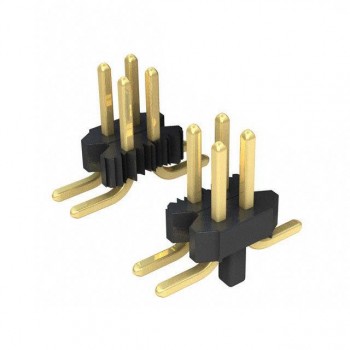

HOT 20021121-00038D4LF
