292206-4

292206-4

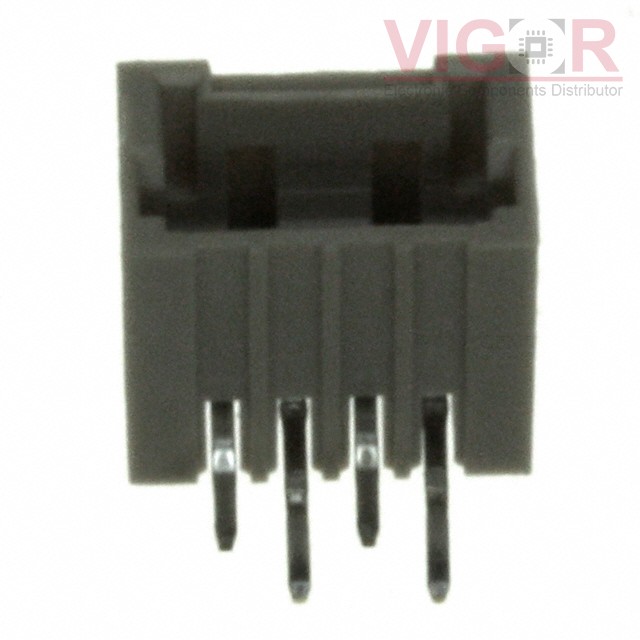

Image is for reference,
please contact us to get the real picture

Part No :

292206-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 4POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
292206-4 PDF
Availability
19787 pieces
Unit Price
$0.58000

Current price of 292206-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

292206-4 Specifications
Type Description
Series:Mini CT
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.193" (4.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

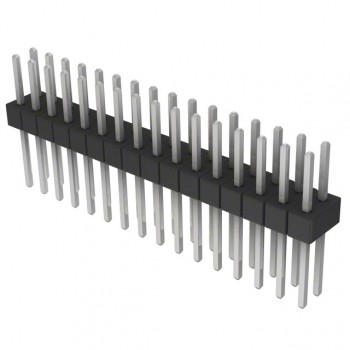

HOT PEC16DACN

PEC16DACN

CONN HEADER VERT 32POS 2.54MM

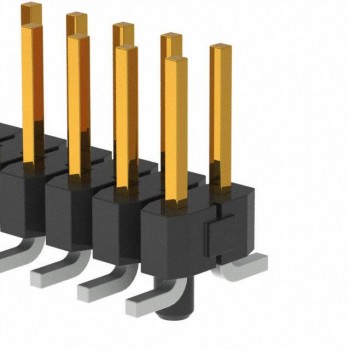

HOT TSM-115-01-L-DV-A-P-TR

TSM-115-01-L-DV-A-P-TR

CONN HEADER SMD 30POS 2.54MM

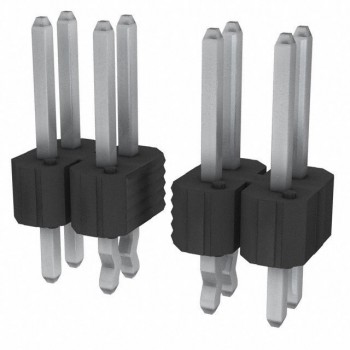

HOT 69192-450HLF
