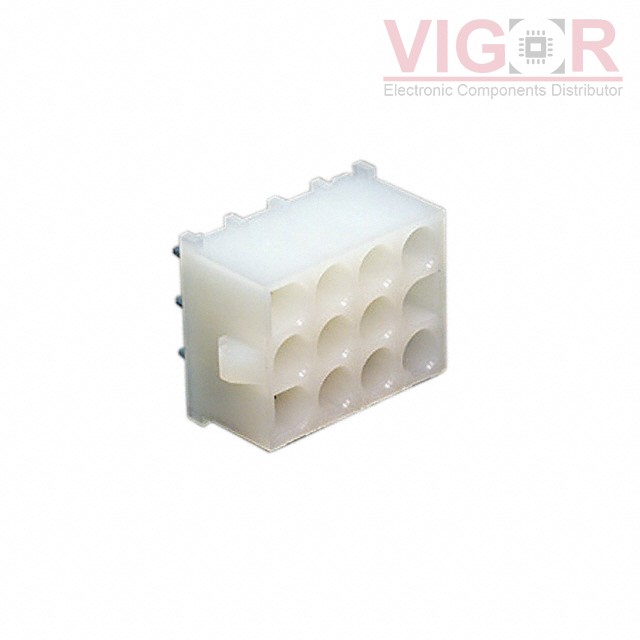

0010844120

0010844120

Image is for reference,
please contact us to get the real picture

Part No :

0010844120

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 12POS 6.35MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
0010844120 PDF
Availability
3442 pieces
Unit Price
$1.59000

Current price of 0010844120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0010844120 Specifications
Type Description
Series:MLX 42002
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.250" (6.35mm)
Number of Positions:12
Number of Rows:3
Row Spacing - Mating:0.250" (6.35mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.169" (4.30mm)
Overall Contact Length:-
Insulation Height:0.550" (13.97mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:137.8µin (3.50µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

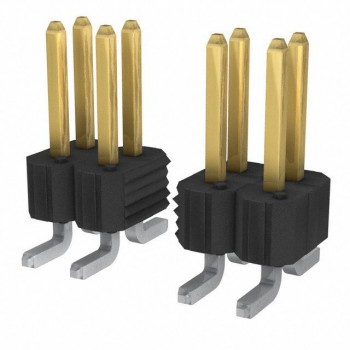

HOT 54202-G0815LF

54202-G0815LF

CONN HEADER SMD 30POS 2.54MM

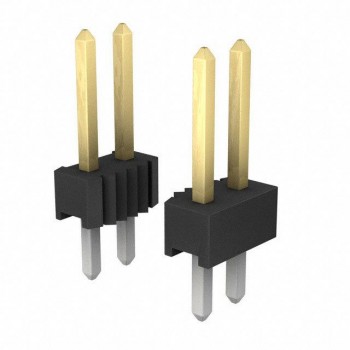

HOT 9-146252-0-13

9-146252-0-13

CONN HEADER VERT 26POS 2.54MM

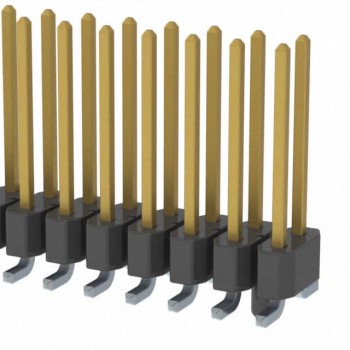

HOT TSM-111-03-L-DV-A-P-TR
