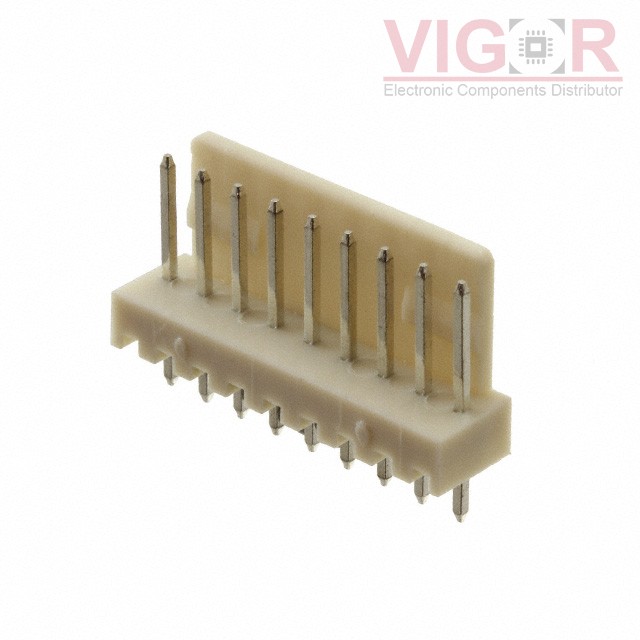

LHA-09-TS

Image is for reference,
please contact us to get the real picture

Part No :: LHA-09-TS

Manufacturer: Adam Tech

Description: CONN HEADER VERT 9POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: LHA-09-TS PDF

Availability: 1485 pieces

Unit Price: ~~$0.28000~~

Current price of LHA-09-TS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LHA-09-TS Specifications

Type	Description
Series:	LHA
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.291" (7.40mm)
Contact Length - Post:	0.134" (3.40mm)
Overall Contact Length:	0.559" (14.20mm)
Insulation Height:	0.134" (3.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Ivory
Current Rating (Amps):	3A
Voltage Rating:	250VAC
