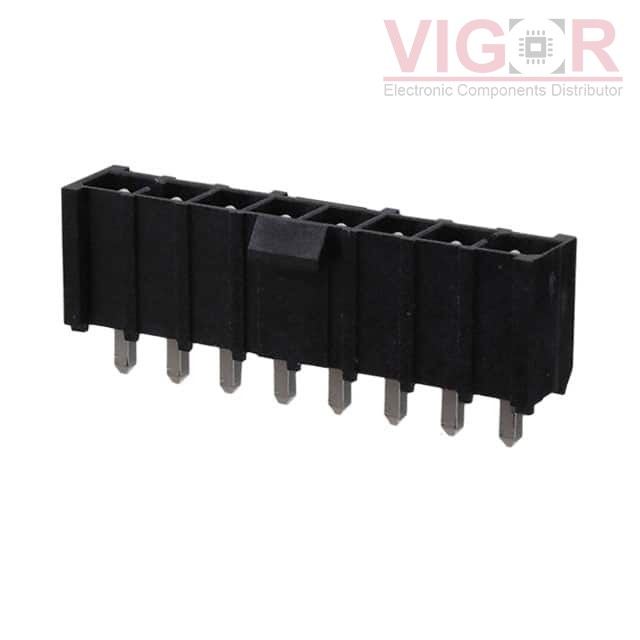

IPBT-108-H1-T-S-K

IPBT-108-H1-T-S-K

Image is for reference,
please contact us to get the real picture

Part No :

IPBT-108-H1-T-S-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 8POS 4.20MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
IPBT-108-H1-T-S-K PDF
Availability
814 pieces
Unit Price
$2.54000

Current price of IPBT-108-H1-T-S-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPBT-108-H1-T-S-K Specifications
Type Description
Series:Power Mate® IPBT
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.260" (6.60mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.510" (12.95mm)
Insulation Height:0.380" (9.65mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:400VAC, 565VDC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

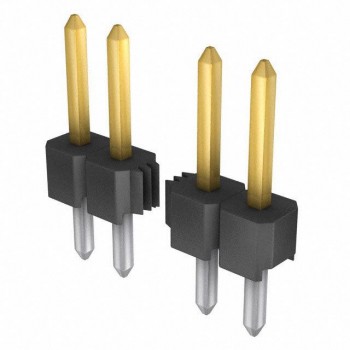

HOT 961106-6804-AR

961106-6804-AR

CONN HEADER VERT 6POS 2.54MM
HOT M80-8430442

M80-8430442

CONN HEADER R/A 4POS 2MM

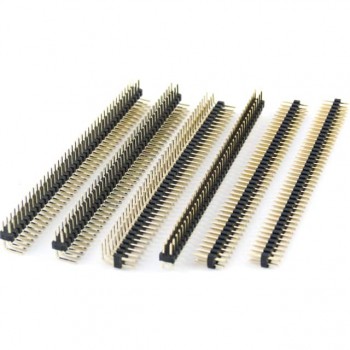

HOT 2112-2X05G00SB
