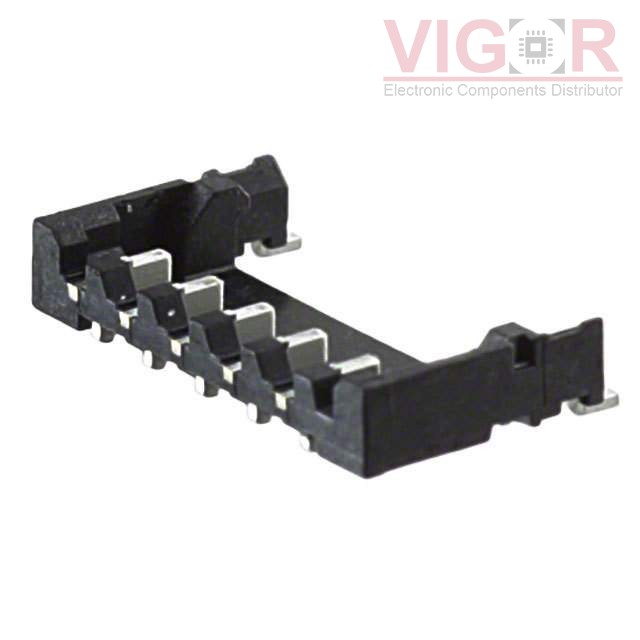

DF57H-5P-1.2V(21)

Image is for reference,
please contact us to get the real picture

Part No :: DF57H-5P-1.2V(21)

Manufacturer: Hirose

Description: CONN HEADER SMD 5POS 1.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: DF57H-5P-1.2V(21) PDF

Availability: 2925 pieces

Unit Price: ~~$0.96000~~

Current price of DF57H-5P-1.2V(21) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF57H-5P-1.2V(21) Specifications

Type	Description
Series:	DF57H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.047" (1.20mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Swing Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.055" (1.40mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
