TMM-119-01-G-S

TMM-119-01-G-S

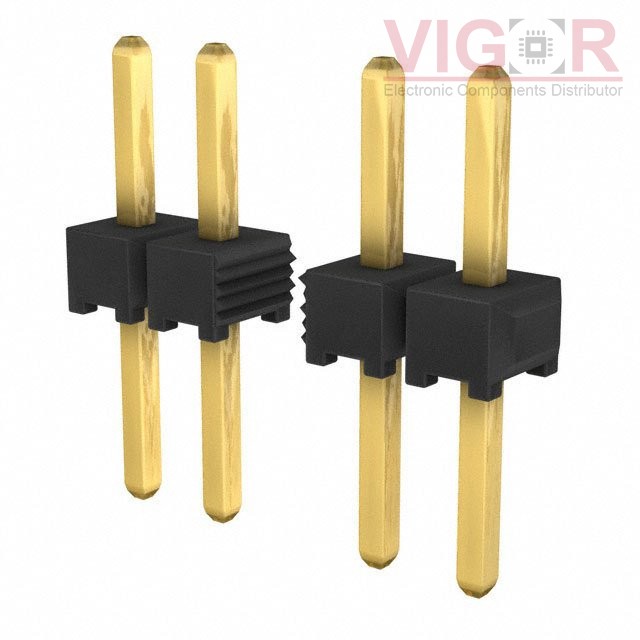

Image is for reference,
please contact us to get the real picture

Part No :

TMM-119-01-G-S

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 19POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TMM-119-01-G-S PDF
Availability
0 pieces
Unit Price
$3.21000

Current price of TMM-119-01-G-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMM-119-01-G-S Specifications
Type Description
Series:TMM
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:19
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.126" (3.20mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:0.323" (8.20mm)
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):3.2A per Contact
Voltage Rating:-
