0022284284

0022284284

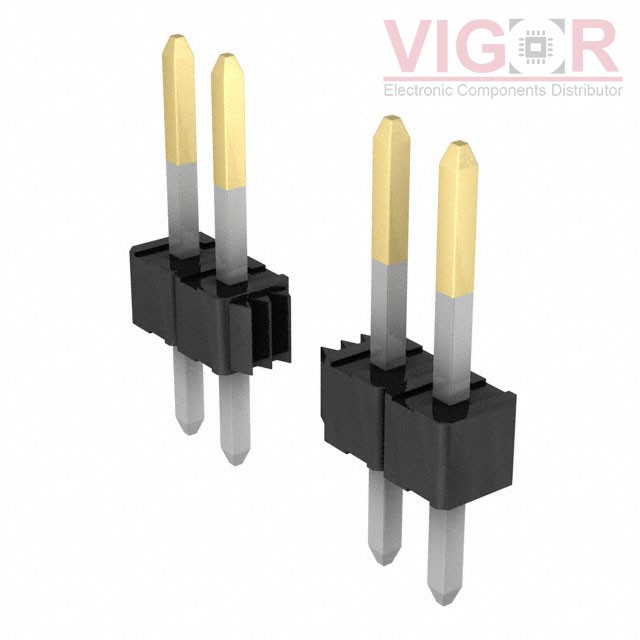

Image is for reference,
please contact us to get the real picture

Part No :

0022284284

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 28POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
0022284284 PDF
Availability
50 pieces
Unit Price
$2.12000

Current price of 0022284284 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0022284284 Specifications
Type Description
Series:KK254, 42375
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:28
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.530" (13.46mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
