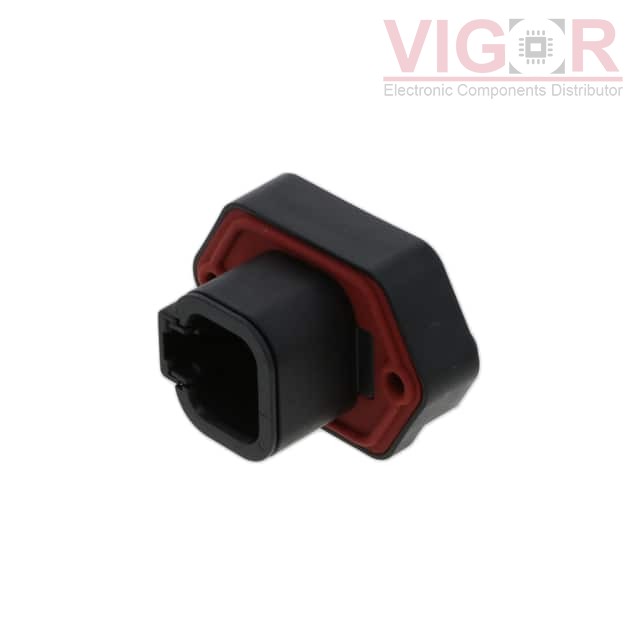

ATP15-4P-BM01BLK

Image is for reference,
please contact us to get the real picture

Part No :: ATP15-4P-BM01BLK

Manufacturer: Tuchel / Amphenol

Description: 4 POSITION STRAIGHT PCB FLANGE M

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 24 - Aug 28 2025

DataSheet: ATP15-4P-BM01BLK PDF

Availability: 20 pieces

Unit Price: ~~$20.29000~~

Current price of ATP15-4P-BM01BLK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATP15-4P-BM01BLK Specifications

Type	Description
Series:	BoardLock™ ATP
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.264" (6.71mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.276" (7.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.181" (4.60mm)
Overall Contact Length:	-
Insulation Height:	1.339" (34.00mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Board Lock, Mounting Flange, Sealed
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	IP67
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	25A
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

TSW-105-07-S-S

CONN HEADER VERT 5POS 2.54MM

HOT

450-80-228-00-106101

CONN HEADER SMD 28POS 2.54MM

HOT

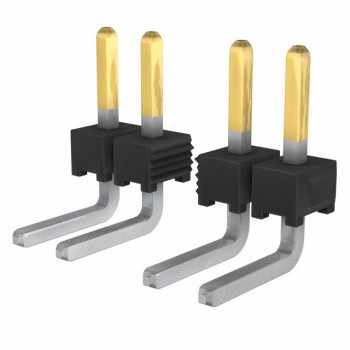

TMM-108-01-L-S-RA
