0015911704

0015911704

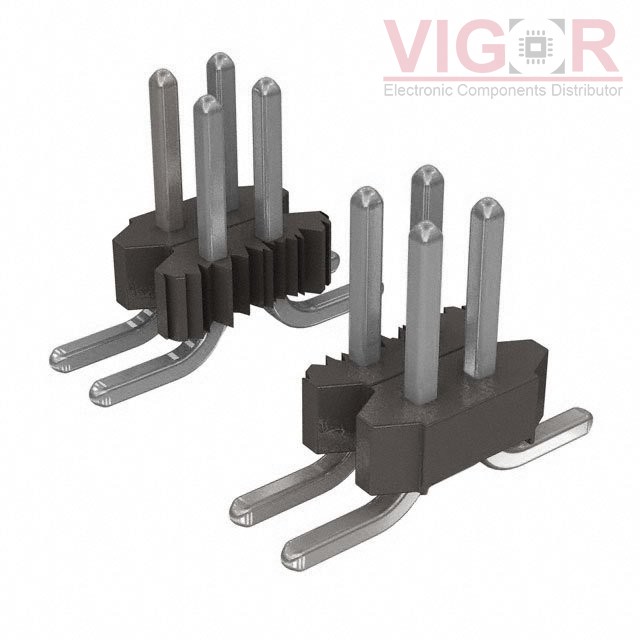

Image is for reference,
please contact us to get the real picture

Part No :

0015911704

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD 70POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
0015911704 PDF
Availability
0 pieces
Unit Price
$3.96326

Current price of 0015911704 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0015911704 Specifications
Type Description
Series:C-Grid 71308
Package:Tube
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:70
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
