SBH11-NBPC-D07-SM-BK

SBH11-NBPC-D07-SM-BK

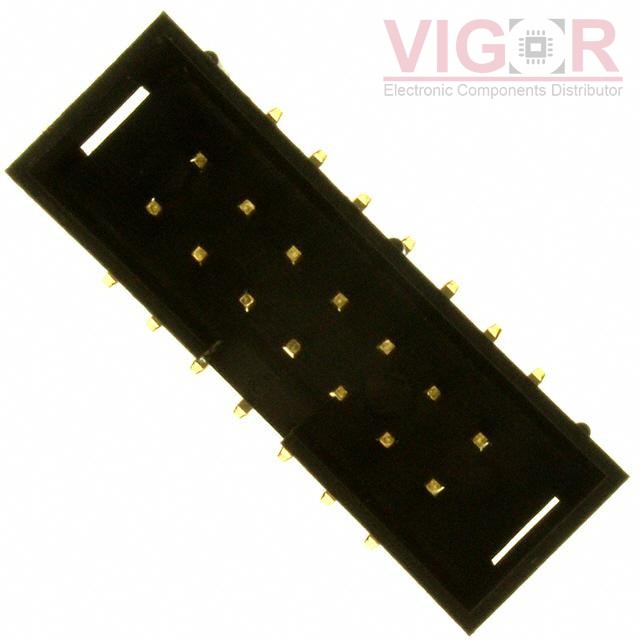

Image is for reference,
please contact us to get the real picture

Part No :

SBH11-NBPC-D07-SM-BK

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER SMD 14POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
SBH11-NBPC-D07-SM-BK PDF
Availability
571 pieces
Unit Price
$1.17000

Current price of SBH11-NBPC-D07-SM-BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBH11-NBPC-D07-SM-BK Specifications
Type Description
Series:SBH11
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.358" (9.10mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Keying Slot
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
