PEC27DAGN

PEC27DAGN

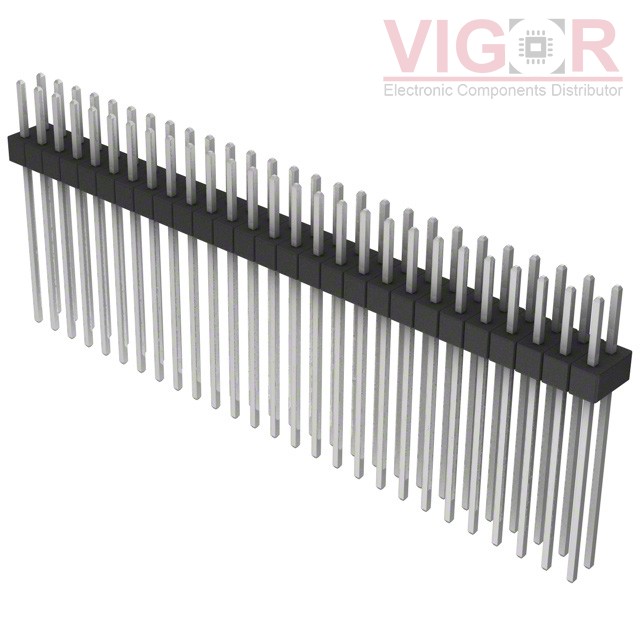

Image is for reference,
please contact us to get the real picture

Part No :

PEC27DAGN

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER VERT 54POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
PEC27DAGN PDF
Availability
0 pieces
Unit Price
$6.54000

Current price of PEC27DAGN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PEC27DAGN Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:54
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.720" (18.29mm)
Overall Contact Length:1.050" (26.67mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
