JN4AT04NJ1-R

JN4AT04NJ1-R

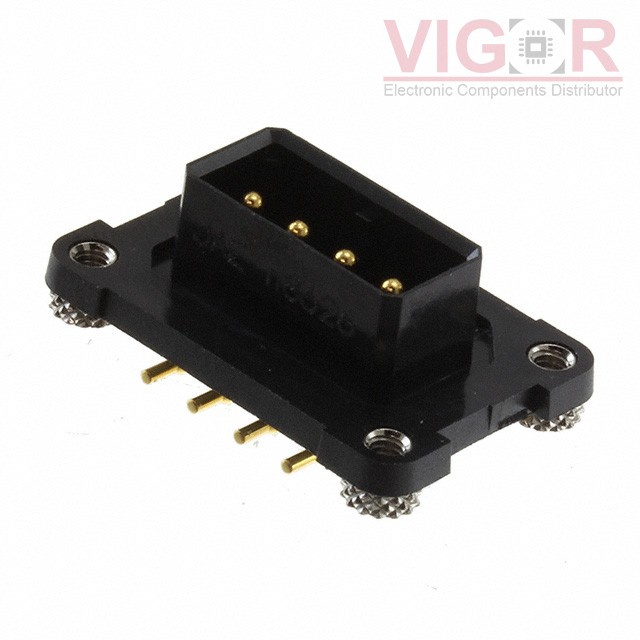

Image is for reference,
please contact us to get the real picture

Part No :

JN4AT04NJ1-R

Manufacturer
JAE Electronics
Description
CONN HEADER R/A 4POS 3.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
JN4AT04NJ1-R PDF
Availability
31 pieces
Unit Price
$6.74000

Current price of JN4AT04NJ1-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN4AT04NJ1-R Specifications
Type Description
Series:JN4
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:0.126" (3.20mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Threaded
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.343" (8.71mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Synthetic Resin
Features:Mounting Flange, Waterproof
Operating Temperature:-20°C ~ 130°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:-
Current Rating (Amps):7A
Voltage Rating:200VAC
