2027060543

2027060543

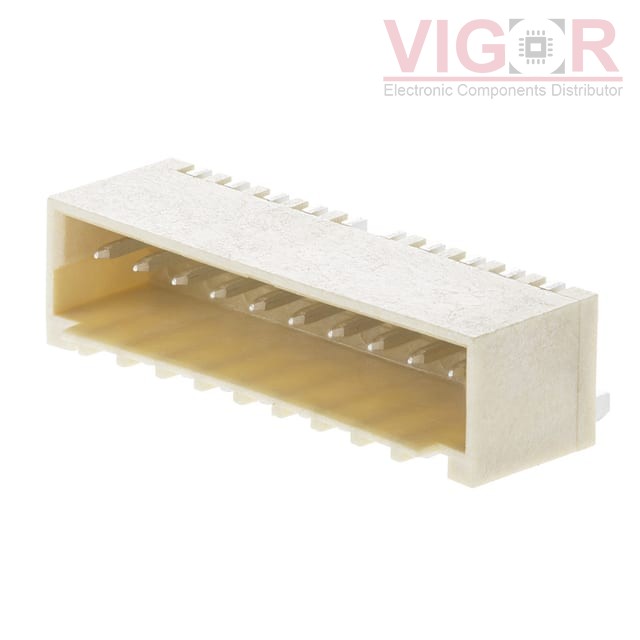

Image is for reference,
please contact us to get the real picture

Part No :

2027060543

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 5POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
2027060543 PDF
Availability
8438 pieces
Unit Price
$0.88000

Current price of 2027060543 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2027060543 Specifications
Type Description
Series:Pico-SPOX 202706
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.106" (2.70mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.175" (4.45mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.94µin (0.100µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
