929836-08-11

929836-08-11

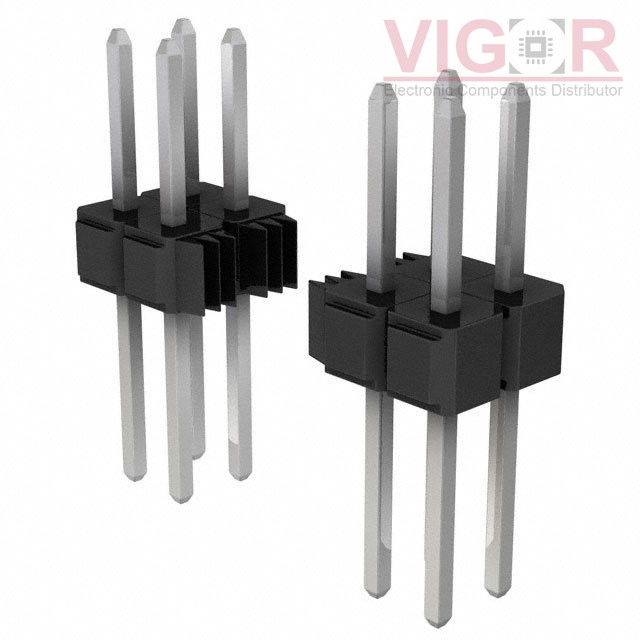

Image is for reference,
please contact us to get the real picture

Part No :

929836-08-11

Manufacturer
3M
Description
CONN HEADER VERT 22POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
929836-08-11 PDF
Availability
0 pieces
Unit Price
$1.91000

Current price of 929836-08-11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

929836-08-11 Specifications
Type Description
Series:929
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:22
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.235" (5.97mm)
Contact Length - Post:0.310" (7.87mm)
Overall Contact Length:0.645" (16.38mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.5A
Voltage Rating:-
