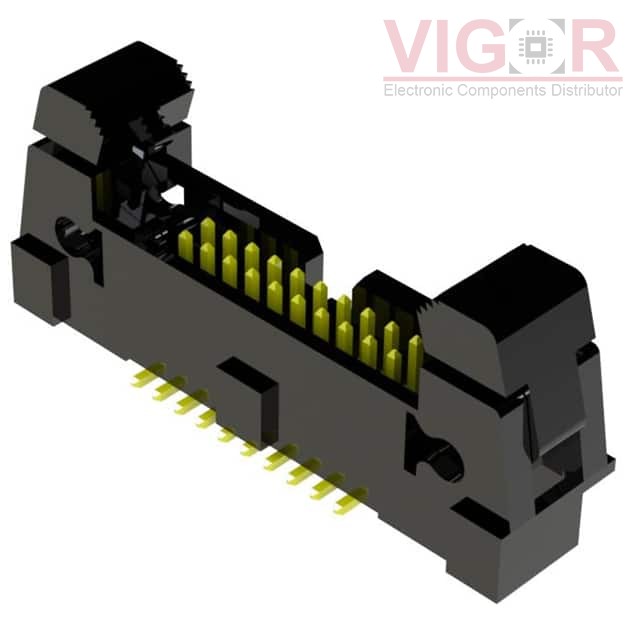

SHTSLSM-505-D-02-G-V-LL-LF

SHTSLSM-505-D-02-G-V-LL-LF

Image is for reference,
please contact us to get the real picture

Part No :

SHTSLSM-505-D-02-G-V-LL-LF

Manufacturer
Major League Electronics
Description
SHROUDED HEADER TERMINAL STRIP
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
SHTSLSM-505-D-02-G-V-LL-LF PDF
Availability
51 pieces
Unit Price
$0.99294

Current price of SHTSLSM-505-D-02-G-V-LL-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SHTSLSM-505-D-02-G-V-LL-LF Specifications
Type Description
Series:SHTSLSM-5
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.721" (18.31mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T, Glass Filled
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:-
