0428203213

0428203213

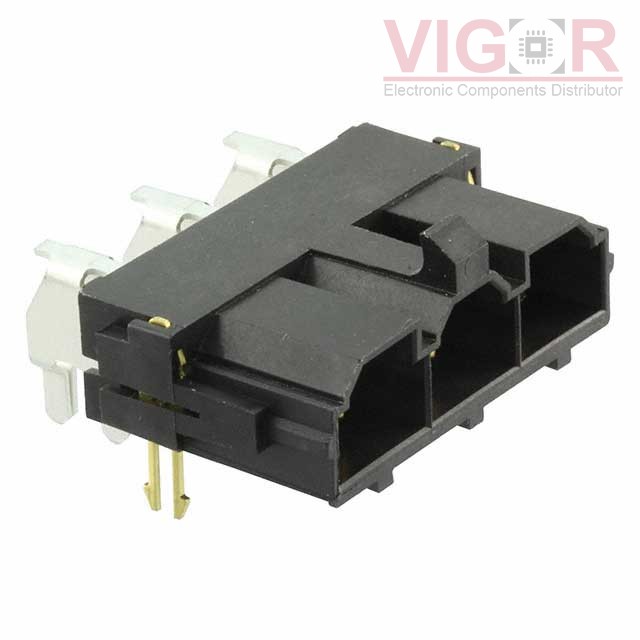

Image is for reference,
please contact us to get the real picture

Part No :

0428203213

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 3POS 10MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
0428203213 PDF
Availability
2433 pieces
Unit Price
$8.87000

Current price of 0428203213 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0428203213 Specifications
Type Description
Series:Mini-Fit Sr 42820
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.394" (10.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.421" (10.70mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Zirconium Alloy
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:Board Lock
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
