2215-2X10G00DN-3.1T-H2.5-P

2215-2X10G00DN-3.1T-H2.5-P

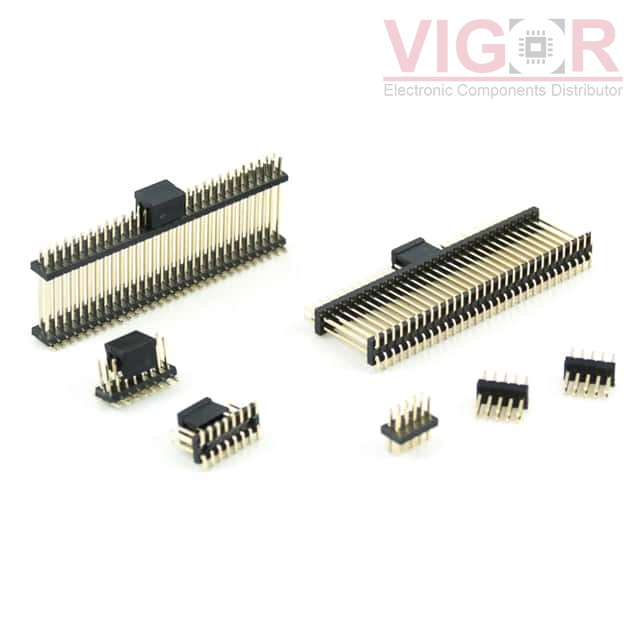

Image is for reference,
please contact us to get the real picture

Part No :

2215-2X10G00DN-3.1T-H2.5-P

Manufacturer
Oupiin
Description
PIN HEADER, DOUBLE ROW, 20 PIN,
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
2215-2X10G00DN-3.1T-H2.5-P PDF
Availability
2860 pieces
Unit Price
$1.35000

Current price of 2215-2X10G00DN-3.1T-H2.5-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2215-2X10G00DN-3.1T-H2.5-P Specifications
Type Description
Series:2215
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.122" (3.10mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Plastic
Features:Pick and Place
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:-
