15SH-B-10-TS-SMT-T/R

15SH-B-10-TS-SMT-T/R

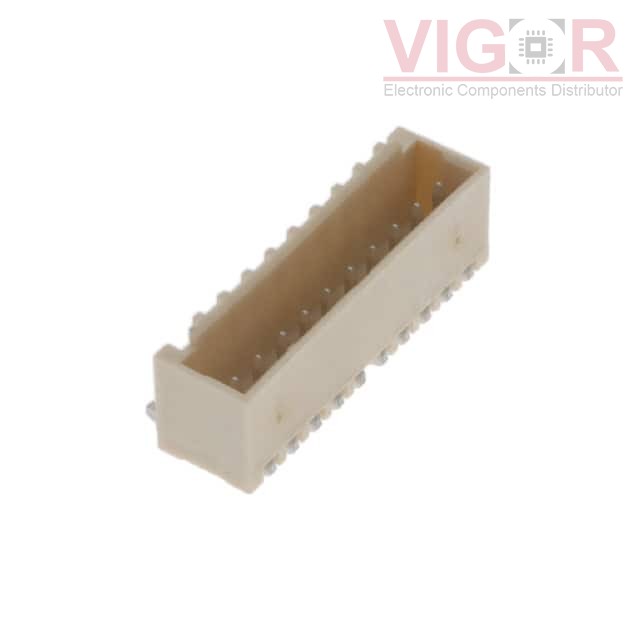

Image is for reference,
please contact us to get the real picture

Part No :

15SH-B-10-TS-SMT-T/R

Manufacturer
Adam Tech
Description
CONN HEADER SMD 10POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
15SH-B-10-TS-SMT-T/R PDF
Availability
2398 pieces
Unit Price
$0.98000

Current price of 15SH-B-10-TS-SMT-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

15SH-B-10-TS-SMT-T/R Specifications
Type Description
Series:15SH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.226" (5.74mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic, Glass Filled
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Ivory
Current Rating (Amps):1.5A
Voltage Rating:100VAC
