7-967288-1

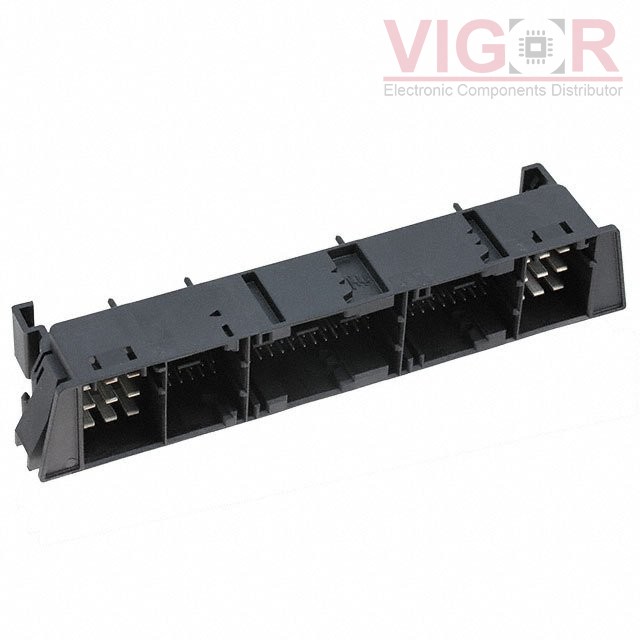

Image is for reference,
please contact us to get the real picture

Part No :: 7-967288-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 134POS

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: 7-967288-1 PDF

Availability: 7 pieces

Unit Price: ~~$15.34000~~

Current price of 7-967288-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7-967288-1 Specifications

Type	Description
Series:	Micro Quadlok
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	134 (9 + 24 + 52 + 40 + 9)
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	1.138" (28.90mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide, Board Lock
Operating Temperature:	-40°C ~ 130°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
