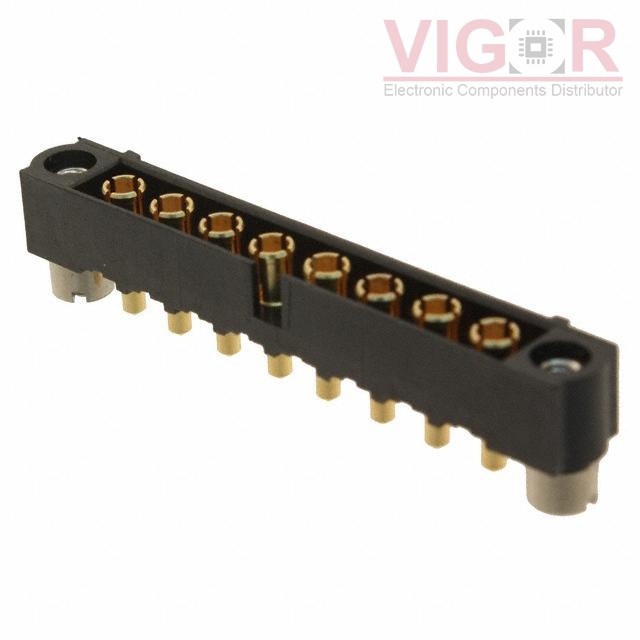

M80-5000000M2-08-331-00-000

M80-5000000M2-08-331-00-000

Image is for reference,
please contact us to get the real picture

Part No :

M80-5000000M2-08-331-00-000

Manufacturer
Harwin
Description
CONN HEADER VERT 8POS 4MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
M80-5000000M2-08-331-00-000 PDF
Availability
119 pieces
Unit Price
$44.32000

Current price of M80-5000000M2-08-331-00-000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M80-5000000M2-08-331-00-000 Specifications
Type Description
Series:Datamate Mix-Tek
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin, Power
Pitch - Mating:0.157" (4.00mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Threaded
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):20A
Voltage Rating:800V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 77317-201-72LF

77317-201-72LF

CONN HEADER R/A 72POS 2.54MM
HOT 800-10-010-65-001101

800-10-010-65-001101

CONN HEADER VERT 10POS 2.54MM
HOT 2074790004

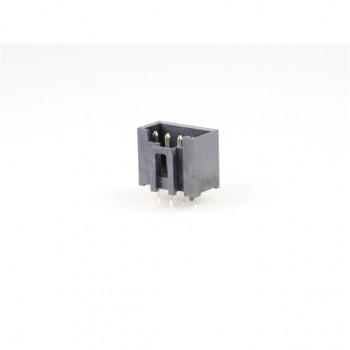

2074790004
