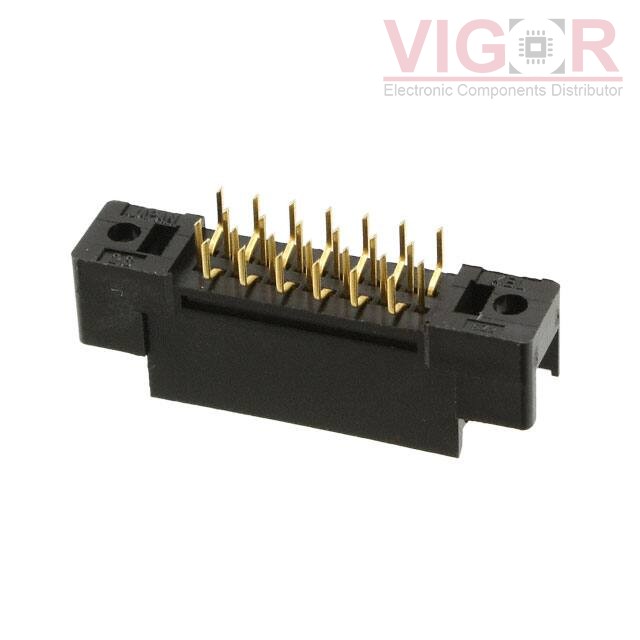

P50E-026P1-S1-EA

P50E-026P1-S1-EA

Image is for reference,
please contact us to get the real picture

Part No :

P50E-026P1-S1-EA

Manufacturer
3M
Description
CONN HEADER VERT 26POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
P50E-026P1-S1-EA PDF
Availability
0 pieces
Unit Price
$3.66000

Current price of P50E-026P1-S1-EA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P50E-026P1-S1-EA Specifications
Type Description
Series:Pak 50, P50E
Package:Bulk
Part Status:Active
Connector Type:Plug
Contact Type:Center Strip Contact
Pitch - Mating:0.050" (1.27mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.421" (10.70mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT FTSH-103-04-L-D-RA

FTSH-103-04-L-D-RA

CONN HEADER R/A 6POS 1.27MM
HOT TSM-105-01-S-DV-A-TR

TSM-105-01-S-DV-A-TR

CONN HEADER SMD 10POS 2.54MM

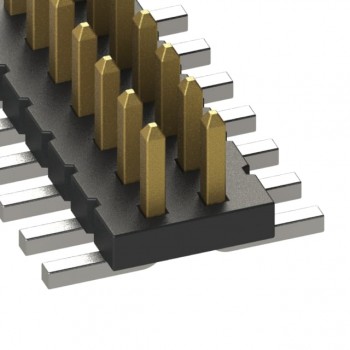

HOT FTS-150-02-F-DV-P
