HIF3BA-26P-2.54W

HIF3BA-26P-2.54W

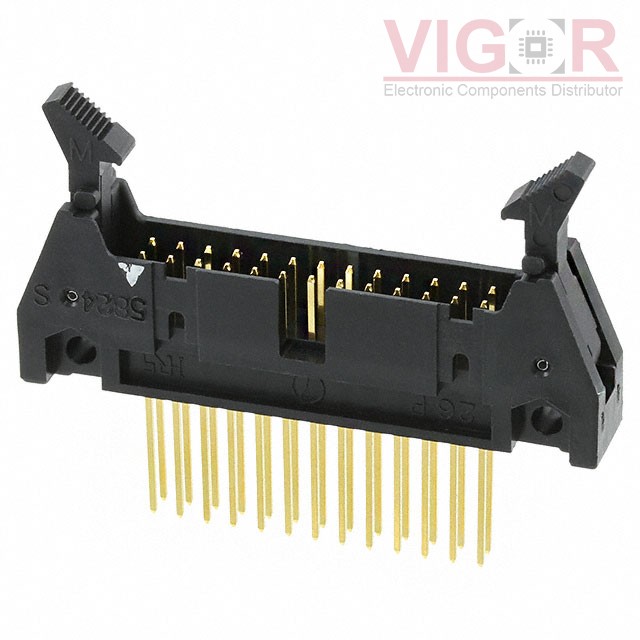

Image is for reference,
please contact us to get the real picture

Part No :

HIF3BA-26P-2.54W

Manufacturer
Hirose
Description
CONN HEADER VERT 26POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
HIF3BA-26P-2.54W PDF
Availability
33 pieces
Unit Price
$7.94000

Current price of HIF3BA-26P-2.54W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HIF3BA-26P-2.54W Specifications
Type Description
Series:HIF3B
Package:Tray
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Wire Wrap
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.516" (13.10mm)
Overall Contact Length:1.043" (26.50mm)
Insulation Height:0.701" (17.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:200V
