45216-600230

45216-600230

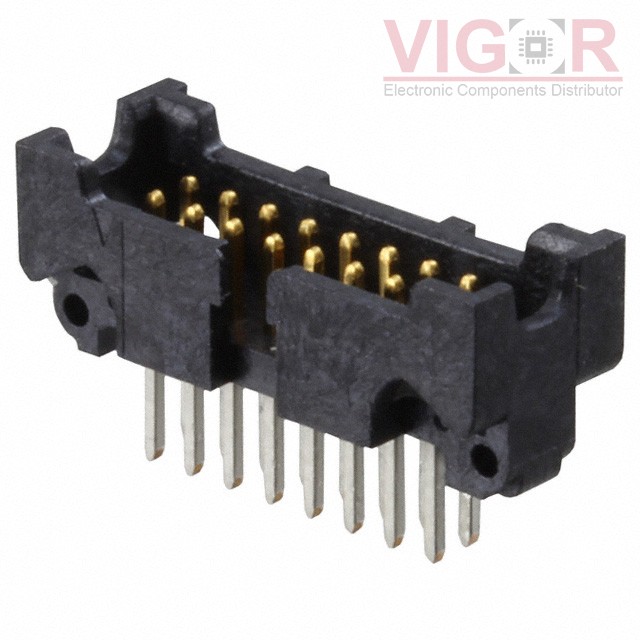

Image is for reference,
please contact us to get the real picture

Part No :

45216-600230

Manufacturer
3M
Description
CONN HEADER VERT 16POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
45216-600230 PDF
Availability
10 pieces
Unit Price
$3.67000

Current price of 45216-600230 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

45216-600230 Specifications
Type Description
Series:452
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.094" (2.40mm)
Overall Contact Length:-
Insulation Height:0.222" (5.65mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:125V
