M22-5320246

M22-5320246

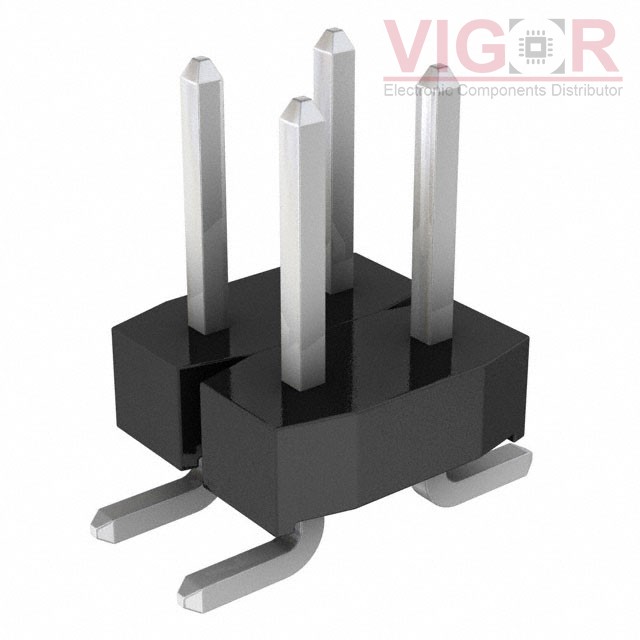

Image is for reference,
please contact us to get the real picture

Part No :

M22-5320246

Manufacturer
Harwin
Description
CONN HEADER SMD 4POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
M22-5320246 PDF
Availability
0 pieces
Unit Price
$0.19422

Current price of M22-5320246 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M22-5320246 Specifications
Type Description
Series:M22
Package:Bulk
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.138" (3.50mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:-
