1355505-1

1355505-1

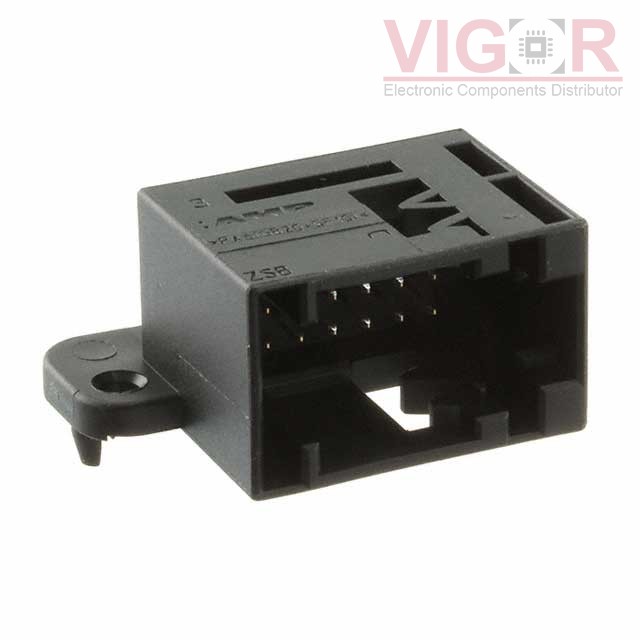

Image is for reference,
please contact us to get the real picture

Part No :

1355505-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 12POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
1355505-1 PDF
Availability
651 pieces
Unit Price
$4.17000

Current price of 1355505-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1355505-1 Specifications
Type Description
Series:Micro Quadlok
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.626" (15.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock, Mounting Flange
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
