2215-2X05G00DN/3B

2215-2X05G00DN/3B

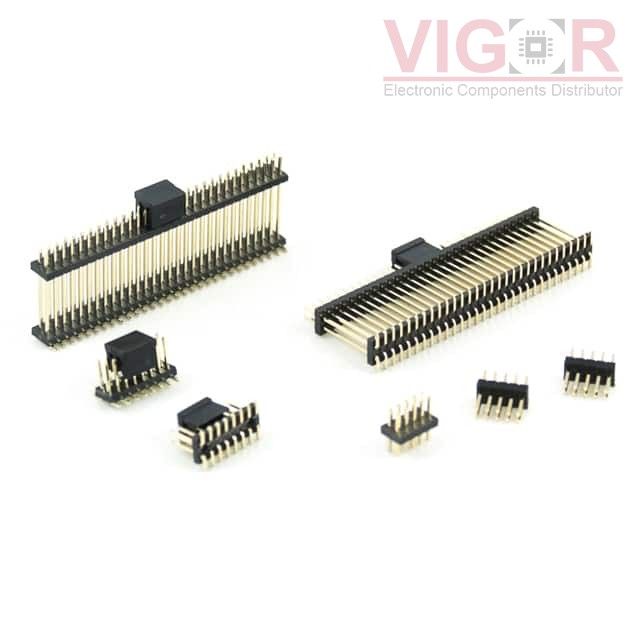

Image is for reference,
please contact us to get the real picture

Part No :

2215-2X05G00DN/3B

Manufacturer
Oupiin
Description
PIN HEADER, DOUBLE ROW, 10 PIN,
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
2215-2X05G00DN/3B PDF
Availability
8 pieces
Unit Price
$0.45000

Current price of 2215-2X05G00DN/3B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2215-2X05G00DN/3B Specifications
Type Description
Series:2215
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.118" (3.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.039" (1.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Plastic
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:-
