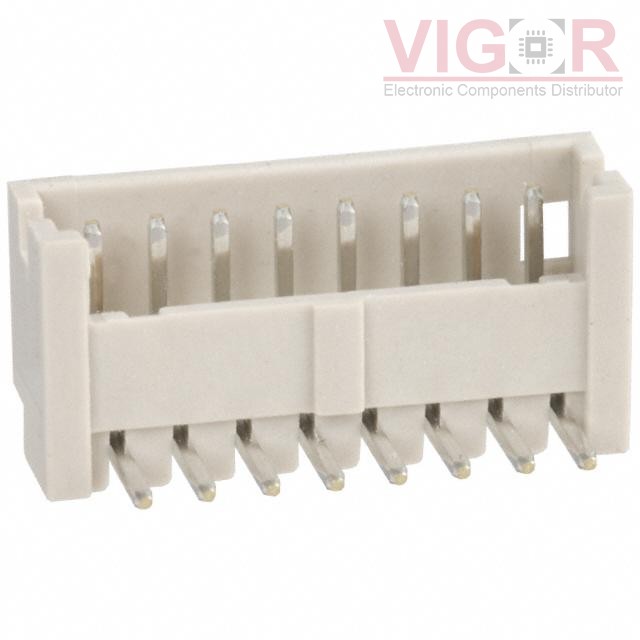

DF13-8P-1.25DS(20)

DF13-8P-1.25DS(20)

Image is for reference,
please contact us to get the real picture

Part No :

DF13-8P-1.25DS(20)

Manufacturer
Hirose
Description
CONN HEADER R/A 8POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
DF13-8P-1.25DS(20) PDF
Availability
1912 pieces
Unit Price
$0.80000

Current price of DF13-8P-1.25DS(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF13-8P-1.25DS(20) Specifications
Type Description
Series:DF13
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.142" (3.60mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
