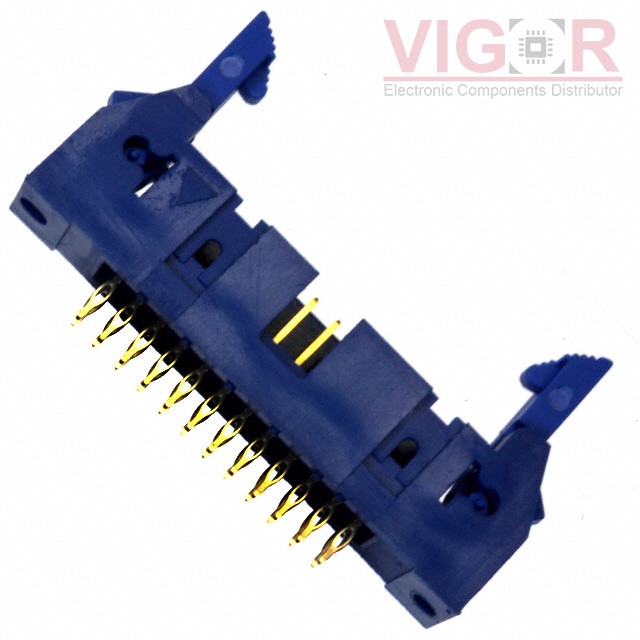

10080054-524LF

Image is for reference,
please contact us to get the real picture

Part No :: 10080054-524LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 24POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: 10080054-524LF PDF

Availability: 0 pieces

Unit Price: ~~$2.81575~~

Current price of 10080054-524LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10080054-524LF Specifications

Type	Description
Series:	Quickie™
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	24
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.234" (5.94mm)
Contact Length - Post:	0.160" (4.06mm)
Overall Contact Length:	0.629" (15.97mm)
Insulation Height:	0.640" (16.26mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze Alloy
Insulation Material:	Polyester, Glass Filled
Features:	Keying Slot
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Blue
Current Rating (Amps):	-
Voltage Rating:	-
