DF3-3P-2DSA(01)

DF3-3P-2DSA(01)

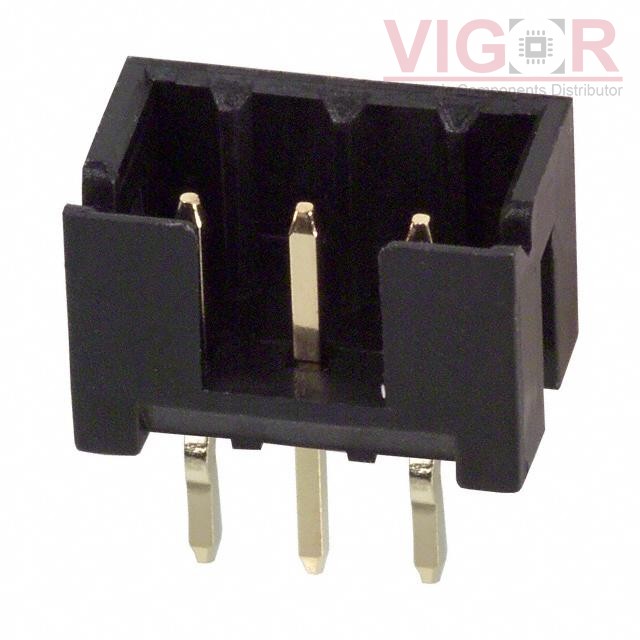

Image is for reference,
please contact us to get the real picture

Part No :

DF3-3P-2DSA(01)

Manufacturer
Hirose
Description
CONN HEADER VERT 3POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
DF3-3P-2DSA(01) PDF
Availability
14768 pieces
Unit Price
$0.47000

Current price of DF3-3P-2DSA(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF3-3P-2DSA(01) Specifications
Type Description
Series:DF3
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.122" (3.10mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:0.299" (7.60mm)
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
