1053131306

1053131306

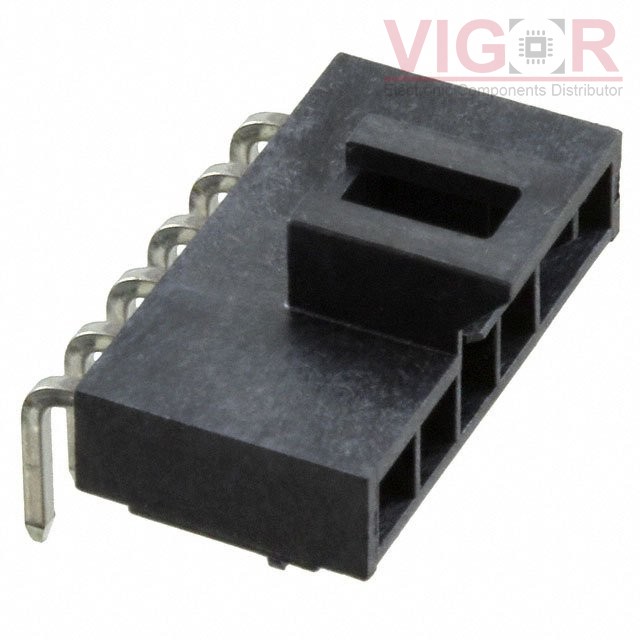

Image is for reference,
please contact us to get the real picture

Part No :

1053131306

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 6POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
1053131306 PDF
Availability
1108 pieces
Unit Price
$2.39000

Current price of 1053131306 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1053131306 Specifications
Type Description
Series:Nano-Fit 105313
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.149" (3.78mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:250V
