MX34005UF1

MX34005UF1

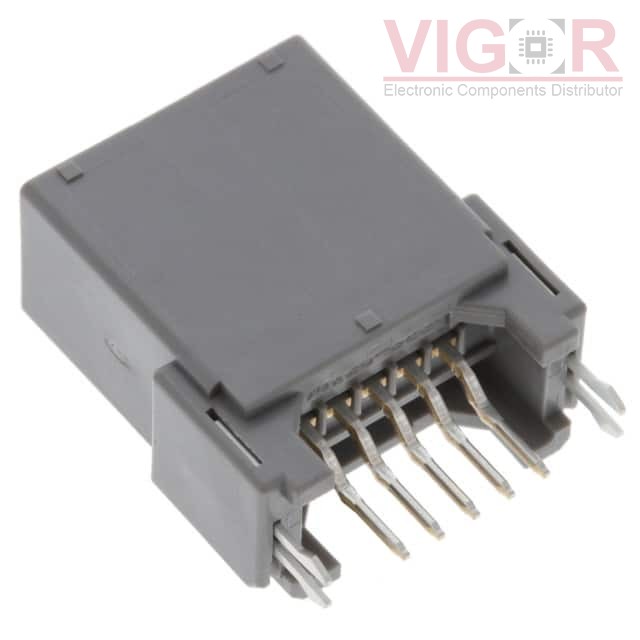

Image is for reference,
please contact us to get the real picture

Part No :

MX34005UF1

Manufacturer
JAE Electronics
Description
CONN HEADER VERT 5POS 2.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
MX34005UF1 PDF
Availability
1261 pieces
Unit Price
$1.94000

Current price of MX34005UF1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MX34005UF1 Specifications
Type Description
Series:MX34
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.087" (2.20mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.303" (7.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.594" (15.09mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):3A
Voltage Rating:-
