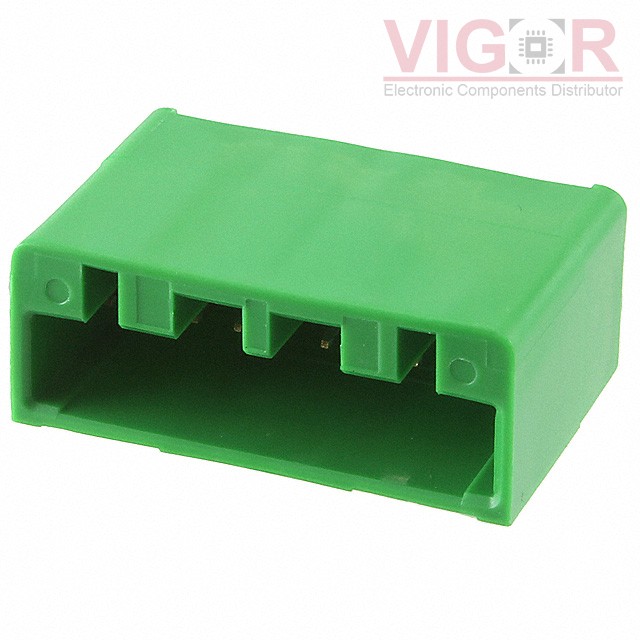

IL-AG5-10P-S3T2

Image is for reference,
please contact us to get the real picture

Part No :: IL-AG5-10P-S3T2

Manufacturer: JAE Electronics

Description: CONN HEADER VERT 10POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: IL-AG5-10P-S3T2 PDF

Availability: 940 pieces

Unit Price: ~~$1.33000~~

Current price of IL-AG5-10P-S3T2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IL-AG5-10P-S3T2 Specifications

Type	Description
Series:	IL-AG5
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.331" (8.40mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	0.594" (15.09mm)
Insulation Height:	0.717" (18.20mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Green
Current Rating (Amps):	3A per Contact
Voltage Rating:	-
