ZLTMM-112-63-G-D-420

ZLTMM-112-63-G-D-420

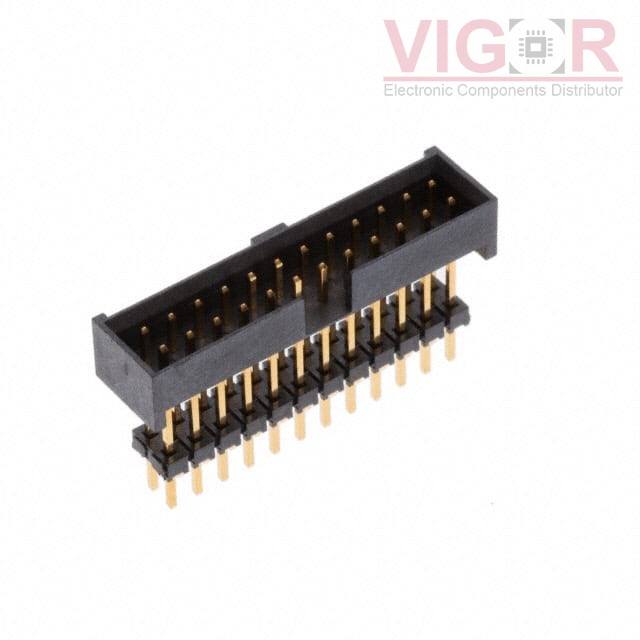

Image is for reference,
please contact us to get the real picture

Part No :

ZLTMM-112-63-G-D-420

Manufacturer
Samtec, Inc.
Description
CONN BRD STACK 2MM 24POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
ZLTMM-112-63-G-D-420 PDF
Availability
34 pieces
Unit Price
$6.57000

Current price of ZLTMM-112-63-G-D-420 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZLTMM-112-63-G-D-420 Specifications
Type Description
Series:Flex Stack, ZLTMM
Package:Bulk
Part Status:Active
Connector Type:Header, Elevated
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:0.140" (3.56mm)
Overall Contact Length:0.555" (14.10mm)
Insulation Height:0.420" (10.67mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
