0346900203

0346900203

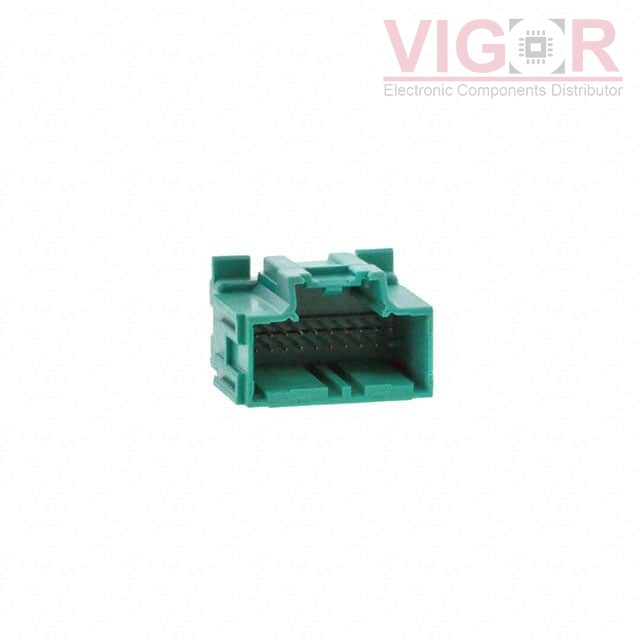

Image is for reference,
please contact us to get the real picture

Part No :

0346900203

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 20POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
0346900203 PDF
Availability
399 pieces
Unit Price
$2.64000

Current price of 0346900203 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0346900203 Specifications
Type Description
Series:Stac64 34690
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.117" (2.97mm)
Overall Contact Length:-
Insulation Height:0.886" (22.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1-776163-1

1-776163-1

CONN HEADER R/A 35POS 4MM

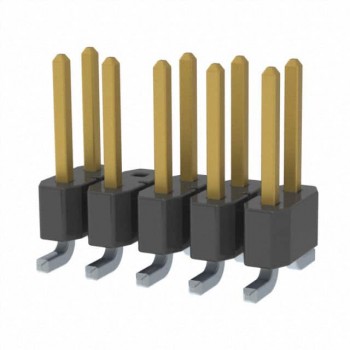

HOT TSM-105-01-L-DV-008

TSM-105-01-L-DV-008

CONN HEADER SMD 10POS 2.54MM

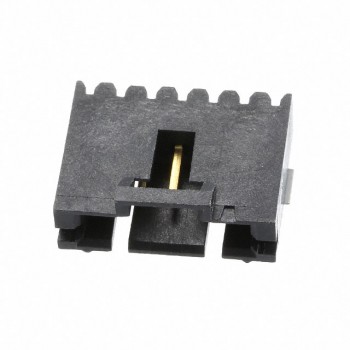

HOT 147323-4
