0026482115

0026482115

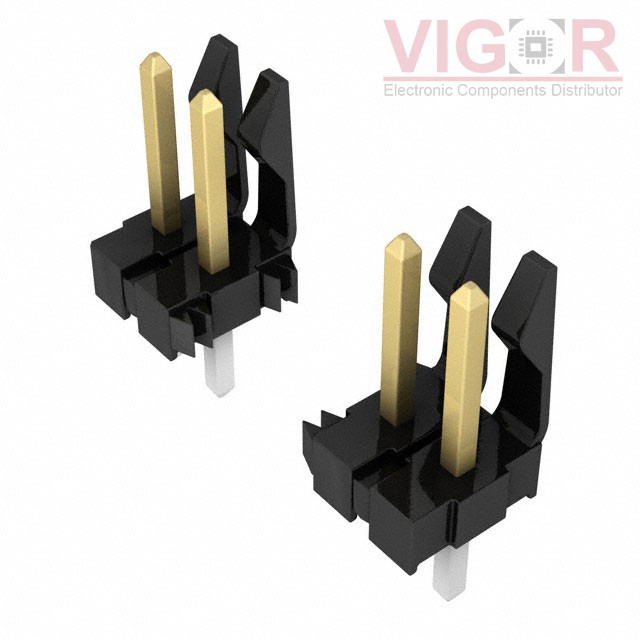

Image is for reference,
please contact us to get the real picture

Part No :

0026482115

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 11POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
0026482115 PDF
Availability
1065 pieces
Unit Price
$5.28000

Current price of 0026482115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0026482115 Specifications
Type Description
Series:KK396, 41671
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:11
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.450" (11.43mm)
Contact Length - Post:0.172" (4.37mm)
Overall Contact Length:0.750" (19.05mm)
Insulation Height:0.500" (12.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
