IPS1-108-01-S-D

IPS1-108-01-S-D

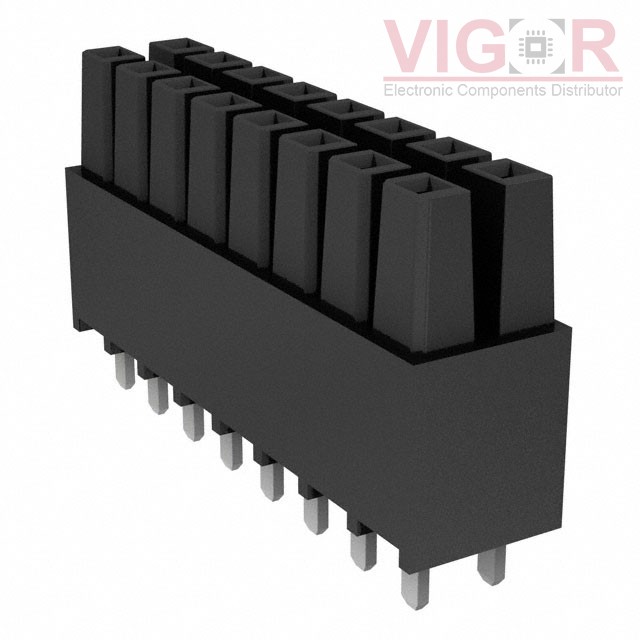

Image is for reference,
please contact us to get the real picture

Part No :

IPS1-108-01-S-D

Manufacturer
Samtec, Inc.
Description
CONN RCPT 16POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
IPS1-108-01-S-D PDF
Availability
137 pieces
Unit Price
$4.44000

Current price of IPS1-108-01-S-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPS1-108-01-S-D Specifications
Type Description
Series:Mini Mate® IPS1
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.100" (2.54mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:775VAC, 1095VDC
