CLM-135-02-LM-D

CLM-135-02-LM-D

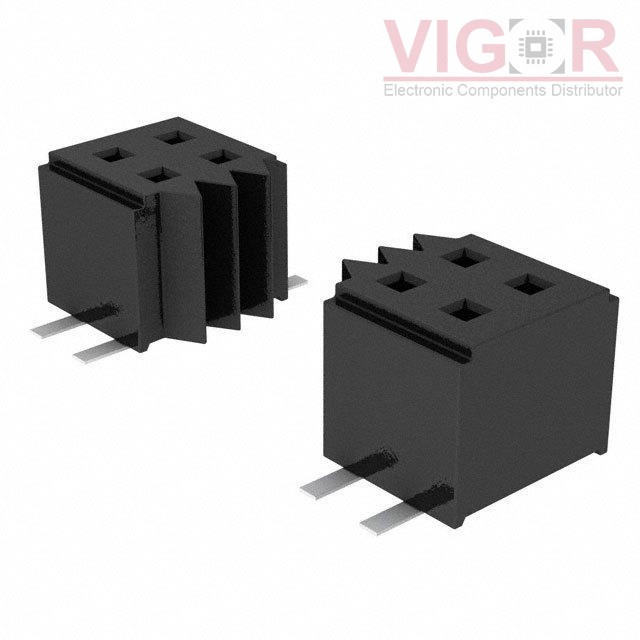

Image is for reference,
please contact us to get the real picture

Part No :

CLM-135-02-LM-D

Manufacturer
Samtec, Inc.
Description
CONN RCPT 70POS 0.039 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
CLM-135-02-LM-D PDF
Availability
178 pieces
Unit Price
$15.95000

Current price of CLM-135-02-LM-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CLM-135-02-LM-D Specifications
Type Description
Series:CLM
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:70
Number of Positions Loaded:All
Pitch - Mating:0.039" (1.00mm)
Number of Rows:2
Row Spacing - Mating:0.039" (1.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.084" (2.14mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2.8A per Contact
Voltage Rating:-
