RSM-136-02-T-D-P-TR

RSM-136-02-T-D-P-TR

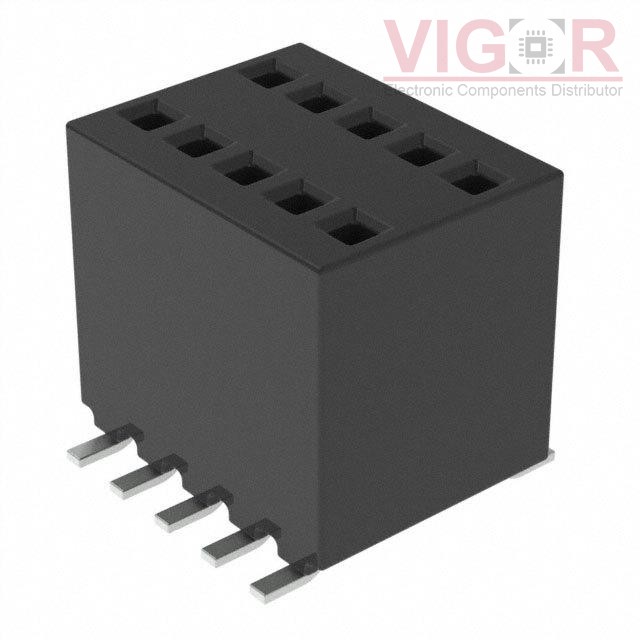

Image is for reference,
please contact us to get the real picture

Part No :

RSM-136-02-T-D-P-TR

Manufacturer
Samtec, Inc.
Description
CONN RCPT 72POS 0.05 TIN SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
RSM-136-02-T-D-P-TR PDF
Availability
0 pieces
Unit Price
$6.55840

Current price of RSM-136-02-T-D-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RSM-136-02-T-D-P-TR Specifications
Type Description
Series:RSM
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:72
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.240" (6.10mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):3.1A per Contact
Voltage Rating:-
