690368181472

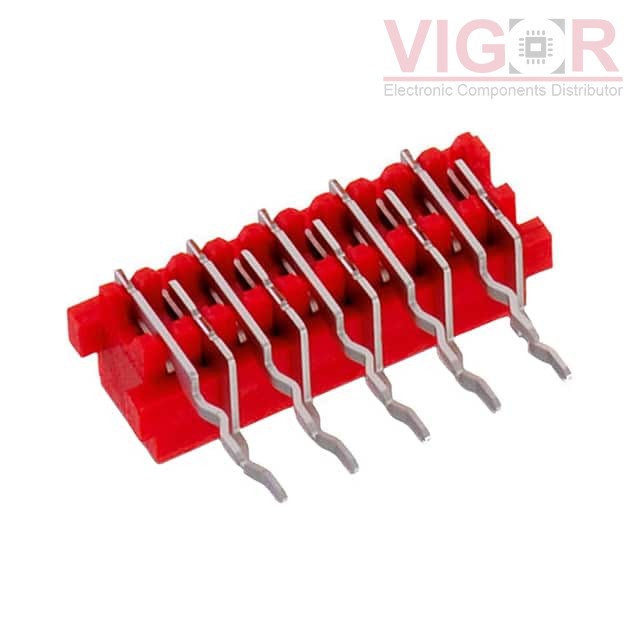

Image is for reference,
please contact us to get the real picture

Part No :: 690368181472

Manufacturer: Würth Elektronik Midcom

Description: WR-MM FEMALE ANGLED CONNECTOR WI

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 690368181472 PDF

Availability: 58 pieces

Unit Price: ~~$1.47000~~

Current price of 690368181472 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

690368181472 Specifications

Type	Description
Series:	WR-MM
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	14
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Kinked Pin, Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Red
Insulation Height:	0.228" (5.80mm)
Contact Length - Post:	0.122" (3.10mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1.5A per Contact
Voltage Rating:	100VAC
