0015247042

0015247042

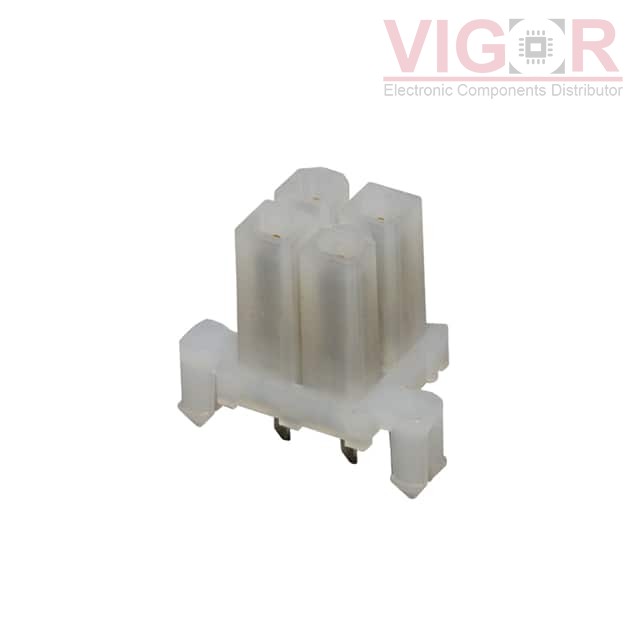

Image is for reference,
please contact us to get the real picture

Part No :

0015247042

Manufacturer
Woodhead - Molex
Description
CONN RCPT 4POS 0.165 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
0015247042 PDF
Availability
0 pieces
Unit Price
$1.15013

Current price of 0015247042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0015247042 Specifications
Type Description
Series:Mini-Fit BMI 42385
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.165" (4.20mm)
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.446" (11.33mm)
Contact Length - Post:0.138" (3.50mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-2
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Lock
Current Rating (Amps):-
Voltage Rating:600V
