BCS-119-L-D-PE-018

BCS-119-L-D-PE-018

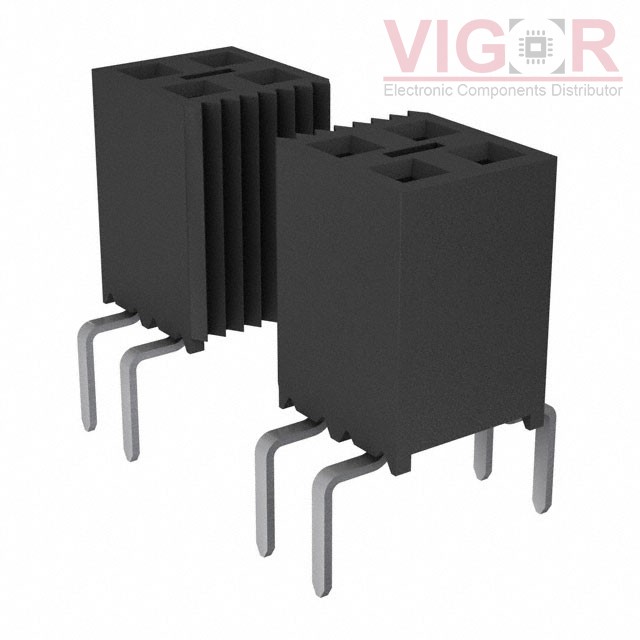

Image is for reference,
please contact us to get the real picture

Part No :

BCS-119-L-D-PE-018

Manufacturer
Samtec, Inc.
Description
CONN RCPT 38POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
BCS-119-L-D-PE-018 PDF
Availability
0 pieces
Unit Price
$5.93000

Current price of BCS-119-L-D-PE-018 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BCS-119-L-D-PE-018 Specifications
Type Description
Series:Tiger Claw™ BCS
Package:Tube
Part Status:Active
Connector Type:Receptacle, Pass Through
Contact Type:Female Socket
Style:Board to Board
Number of Positions:38
Number of Positions Loaded:37
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.290" (7.37mm)
Contact Length - Post:0.128" (3.25mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):4.6A per Contact
Voltage Rating:475VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 5054061660

5054061660

CONN RCPT 16POS 0.059 GOLD SMD
HOT CLT-107-02-L-D-BE-A-TR

CLT-107-02-L-D-BE-A-TR

CONN RCPT 14POS 0.079 GOLD SMD

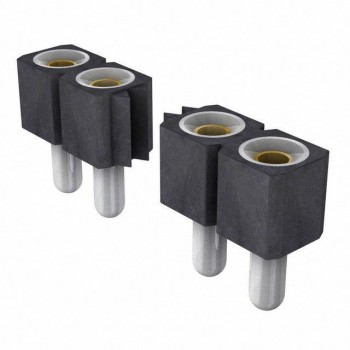

HOT 801-87-030-10-268101
