315-47-162-41-001000

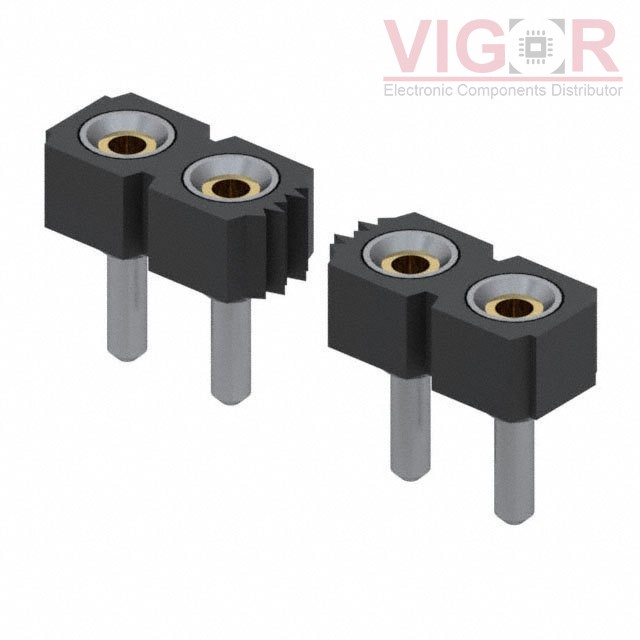

Image is for reference,
please contact us to get the real picture

Part No :: 315-47-162-41-001000

Manufacturer: Mill-Max

Description: CONN RCPT 62POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 315-47-162-41-001000 PDF

Availability: 0 pieces

Unit Price: ~~$14.33280~~

Current price of 315-47-162-41-001000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

315-47-162-41-001000 Specifications

Type	Description
Series:	315
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	62
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.110" (2.79mm)
Contact Length - Post:	0.108" (2.75mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	100V, 150VDC
