5019313070

5019313070

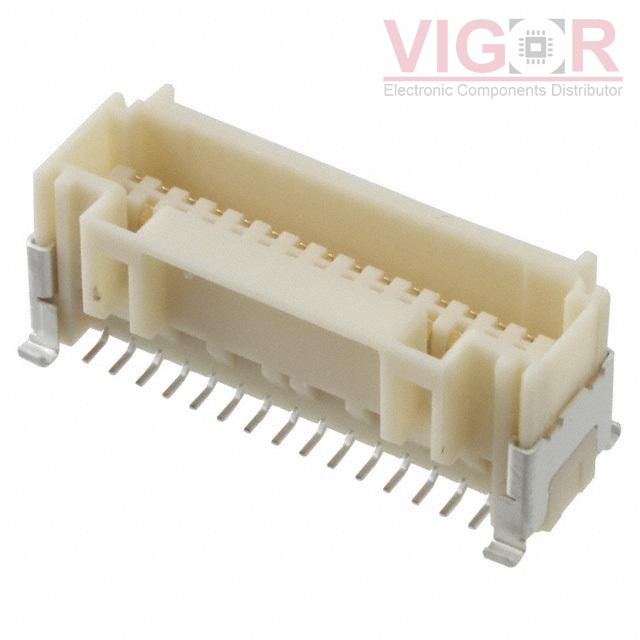

Image is for reference,
please contact us to get the real picture

Part No :

5019313070

Manufacturer
Woodhead - Molex
Description
CONN RCPT 30POS 0.049 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
5019313070 PDF
Availability
3224 pieces
Unit Price
$2.98000

Current price of 5019313070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5019313070 Specifications
Type Description
Series:Duo-Clasp 501931
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:30
Number of Positions Loaded:All
Pitch - Mating:0.049" (1.25mm)
Number of Rows:2
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Insulation Color:Natural
Insulation Height:0.346" (8.80mm)
Contact Length - Post:-
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):1A
Voltage Rating:50V
