5023820370

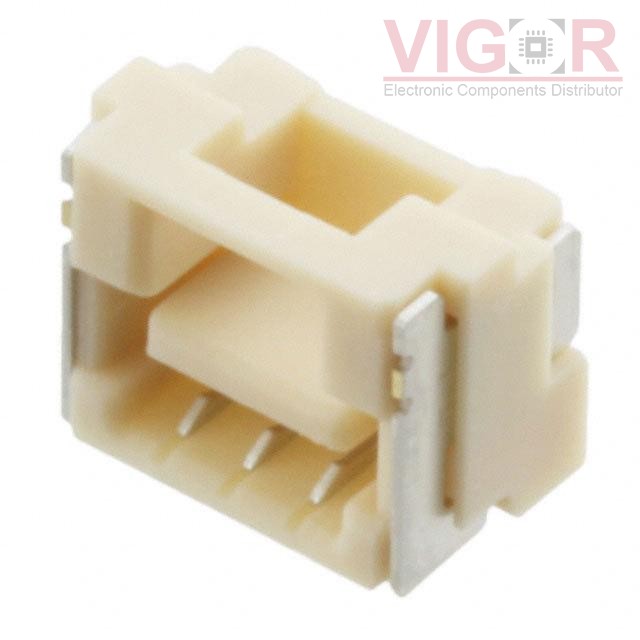

Image is for reference,
please contact us to get the real picture

Part No :: 5023820370

Manufacturer: Woodhead - Molex

Description: CONN RCPT 3POS 0.049 TIN SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: 5023820370 PDF

Availability: 11356 pieces

Unit Price: ~~$0.56000~~

Current price of 5023820370 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5023820370 Specifications

Type	Description
Series:	CLIK-Mate 502382
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Cable/Wire
Number of Positions:	3
Number of Positions Loaded:	All
Pitch - Mating:	0.049" (1.25mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Insulation Color:	Natural
Insulation Height:	0.173" (4.40mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Solder Retention
Current Rating (Amps):	1A
Voltage Rating:	50V
